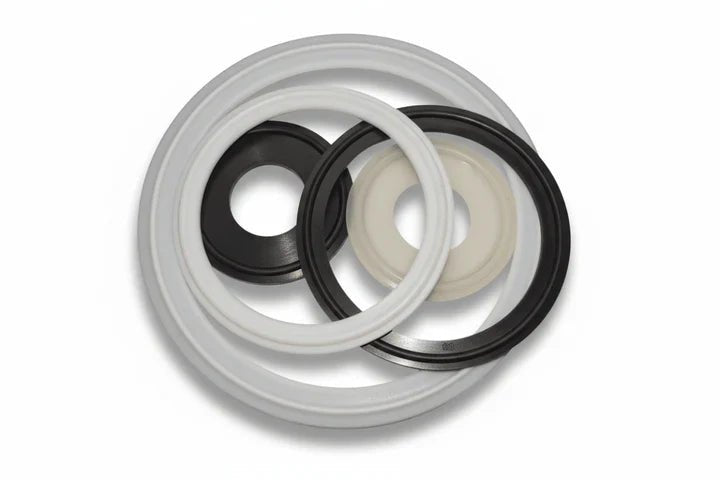

Which Tri-Clamp Gasket Should You Use? EPDM, PTFE & More

For most water-based food and beverage lines, EPDM is the default. PTFE suits aggressive chemicals and high-temperature service; Viton is the right call where the line carries oils or fats; silicone works where thermal cycling and flexibility are the main considerations.

Tri-clamp gaskets are small components with a significant job. A tri-clamp gasket forms the mechanical seal between two ferrule faces. If its material is not suited to the application, it may degrade, leak or contaminate the product line. The failure mode is rarely obvious until it has already caused a problem.

This guide breaks down each material so you can match the specification to the system.

EPDM Gaskets

EPDM is the default material for water-based food and beverage lines, CIP systems, and general sanitary processing.

It covers a temperature range of -54°C to 149°C, which is wide enough for most hygienic processing environments, including steam-in-place (SIP) cycles that run below that upper limit. EPDM generally performs well with water, steam, dilute acids and many caustic or acidic CIP solutions, subject to the cleaner concentration and operating temperature. What it cannot handle is contact with oils, fats, or petroleum-based products. If those pass through the line, EPDM will swell and lose its sealing performance.

FDA-compatible EPDM grades are available, with peroxide-cured compounds often preferred for food and pharmaceutical applications due to their lower extractable content. EPDM is also the most cost-effective option across the four materials, which matters when a system has dozens of connection points to seal.

Typical applications: breweries, dairies, beverage processing, water and wastewater treatment, and pharmaceutical CIP lines.

PTFE (Teflon) Gaskets

Use PTFE when the line carries aggressive chemicals, solvents, concentrated acids, or oxidising agents that would attack rubber-based gaskets.

PTFE has the widest temperature range of the four materials: -157°C to 232°C. Its chemical resistance is also broader than that of any elastomer, covering strong mineral acids, oxidising agents, organic solvents, and most cleaning agents. PTFE is less compressible than rubber, so sufficient clamp pressure is required to achieve a reliable seal.

FDA-compatible PTFE grades are available for food and pharmaceutical applications. Where USP Class VI compliance is required, confirm that the specific gasket product is certified accordingly. It is also a common choice where product purity is critical, and there is a zero-tolerance requirement for extractable residues.

Typical applications: chemical processing lines, pharmaceutical manufacturing, concentrated acid or solvent transfer, high-temperature steam service.

Viton (FKM) Gaskets

Viton is generally the more suitable option when the system carries oils, fats, fuels, or hydrocarbons.

Its temperature range runs from -26°C to 222°C. Where Viton stands apart is its resistance to oils, fats, petroleum-based products, and many organic solvents, which would cause EPDM to fail quickly. It is not the best choice for high-temperature steam, and its lower limit of -26°C means it is not suited to cryogenic or very low-temperature applications.

FDA-compatible Viton grades are available for food processing lines that handle animal fats, vegetable oils and similar products. It is also used in chemical processing where resistance to hydrocarbon-based media is the primary concern. Cost per gasket sits above EPDM and silicone but below PTFE.

Typical applications: food-grade oil and fat processing, biodiesel production, chemical dosing lines, and sanitary systems carrying fatty acids or petroleum-based media.

Silicone Gaskets

Silicone suits applications where the line goes through frequent temperature swings or where gasket flexibility is more important than broad chemical resistance.

With a temperature range of -60°C to 200°C, silicone performs well across changing operating conditions and retains its flexibility at low temperatures. It handles water-based media and moderate-temperature steam service, but it is less suitable for oils, fats and concentrated chemicals. Viton is generally a better choice for oily media, while PTFE may be required for more aggressive chemicals.

FDA-compatible silicone grades are available and commonly used in food processing and pharmaceutical applications. Their flexibility and compression recovery also make them practical for connections that are frequently disassembled and reassembled, or for systems that experience substantial temperature variation between production and shutdown cycles.

Typical applications: food processing, pharmaceutical packaging lines, systems with significant thermal cycling.

Material Comparison: EPDM vs PTFE vs Viton vs Silicone

When Should Tri-Clamp Gaskets Be Replaced?

No fixed replacement interval applies to every system. Replacement should be based primarily on the gasket’s condition rather than age alone.

Replace the gasket before reassembly if you notice any of the following signs:

• Compression set: Replace a gasket that does not return to its original shape after the clamp is released, as it may not seal correctly on reassembly. This is common in EPDM exposed to temperatures near its upper limit.
• Cracking or crazing: Cracks on the sealing face indicate degradation and may compromise hygiene and pressure performance. Incorrectly stored EPDM can also crack after exposure to ozone or UV.
• Discolouration or softening: Colour changes, tackiness or surface pitting may indicate chemical or heat damage. Replace the gasket even if it remains dimensionally intact.

For active CIP systems running caustic and acid cycles, inspecting gaskets every three to six months is a reasonable baseline. Lines running steam or carrying aggressive chemicals warrant more frequent checks.

Inox Fittings supplies replacement gaskets alongside compatible tri-clamp fittings, with standard sizes available in EPDM, PTFE, Viton and silicone.

FAQs

Are all tri-clamp gaskets food-safe?

Not automatically. FDA compatibility applies to the specific compound and cure system, not the material class as a whole. Inox Fittings stocks FDA-compatible options in EPDM, PTFE, Viton and silicone. Suitability also depends on the media, concentration, temperature and exposure time. For requirements such as USP Class VI or 3-A Sanitary Standards, verify the individual product certification.

Which gasket for a brewery?

EPDM is the standard choice for most brewery applications. It covers wort, beer, water, and the caustic and acid cleaners used in CIP cycles, and it handles steam temperatures used in SIP processes up to 149°C. It is also the most economical option for a system with a large number of connections. A different material may be required for lines carrying concentrated ethanol, solvent-based cleaners or products with high oil content. Check the chemical compatibility data before selecting Viton or PTFE.

Can I use EPDM with oils or fats?

No. EPDM has poor resistance to oils, fats, and petroleum-based products. Contact with these media causes EPDM to absorb the material and swell, degrading sealing performance and contaminating the product line. For lines carrying oils, fats, fatty acids, or hydrocarbons, Viton (FKM) is the correct material. If the same line carries both water-based and oil-based products at different times, consult a supplier before specifying a single gasket material, as no single elastomer handles both well.

How often should tri-clamp gaskets be replaced?

The practical trigger is inspection rather than a fixed schedule. A gasket showing compression set, surface cracking, or discolouration should be replaced at the next scheduled shutdown, regardless of age. In active CIP systems running routine caustic and acid cycles, inspecting gaskets every three to six months is a reasonable baseline. Lines carrying steam or aggressive chemicals should be checked more frequently. Replacing a worn gasket during a planned maintenance window is considerably less disruptive than locating a failed seal mid-production.
