DIN PN16 Gaskets 1/2" to 12" 15NB to 400NB ISO 7005

Australian made DIN PN16 full face flange seals are available in NBR, EPDM, Klingersil C4400 or Graphite. All materials are 3mm thick except Klinger C4400 and graphite is 1.5mm.

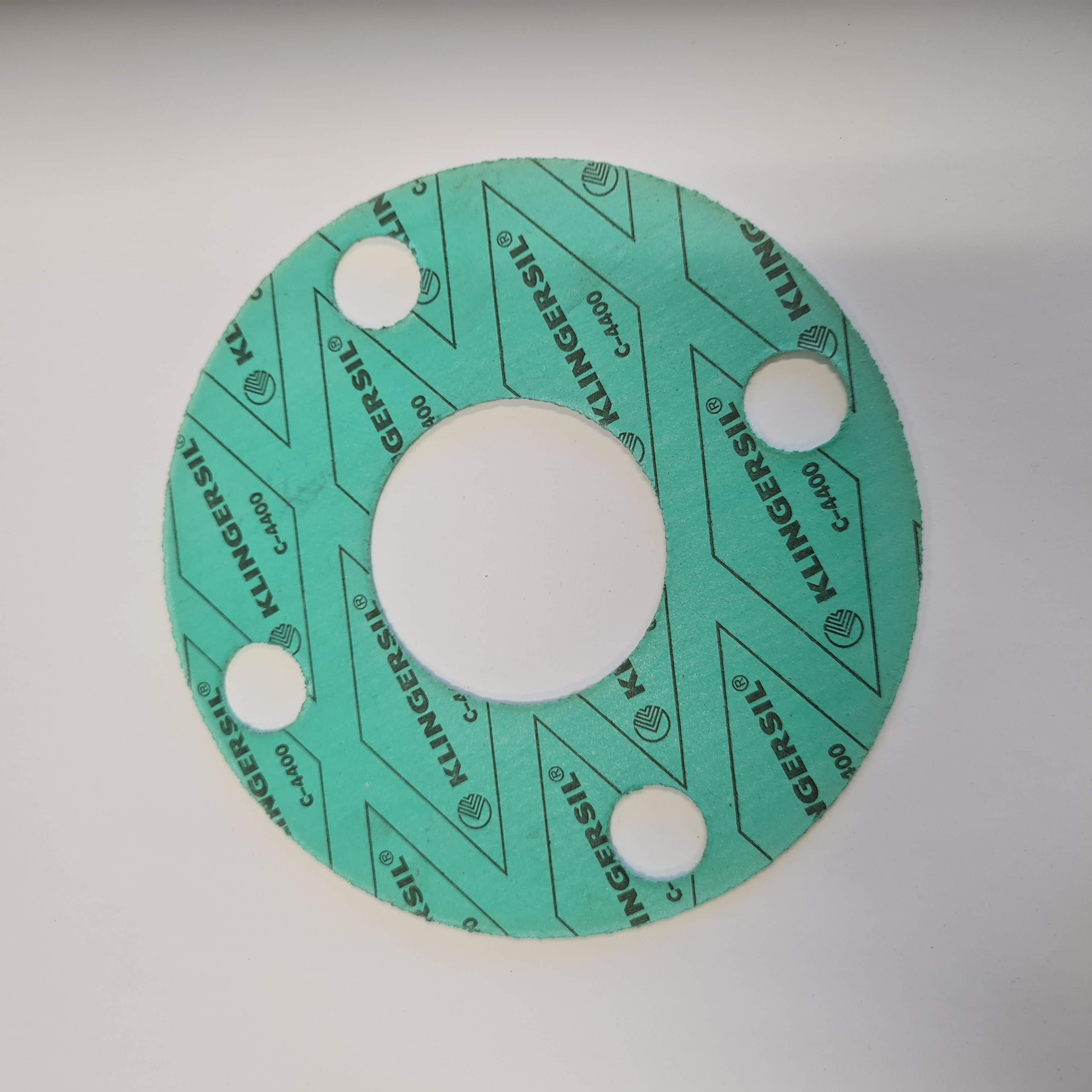

Klingersil C4400

Klingersil® C-4400 is a universal gasket material for safe and reliable sealing. It consists of a unique matrix, which offers an excellent combination of different properties. Areas of application include use with oils, water, steam, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants.

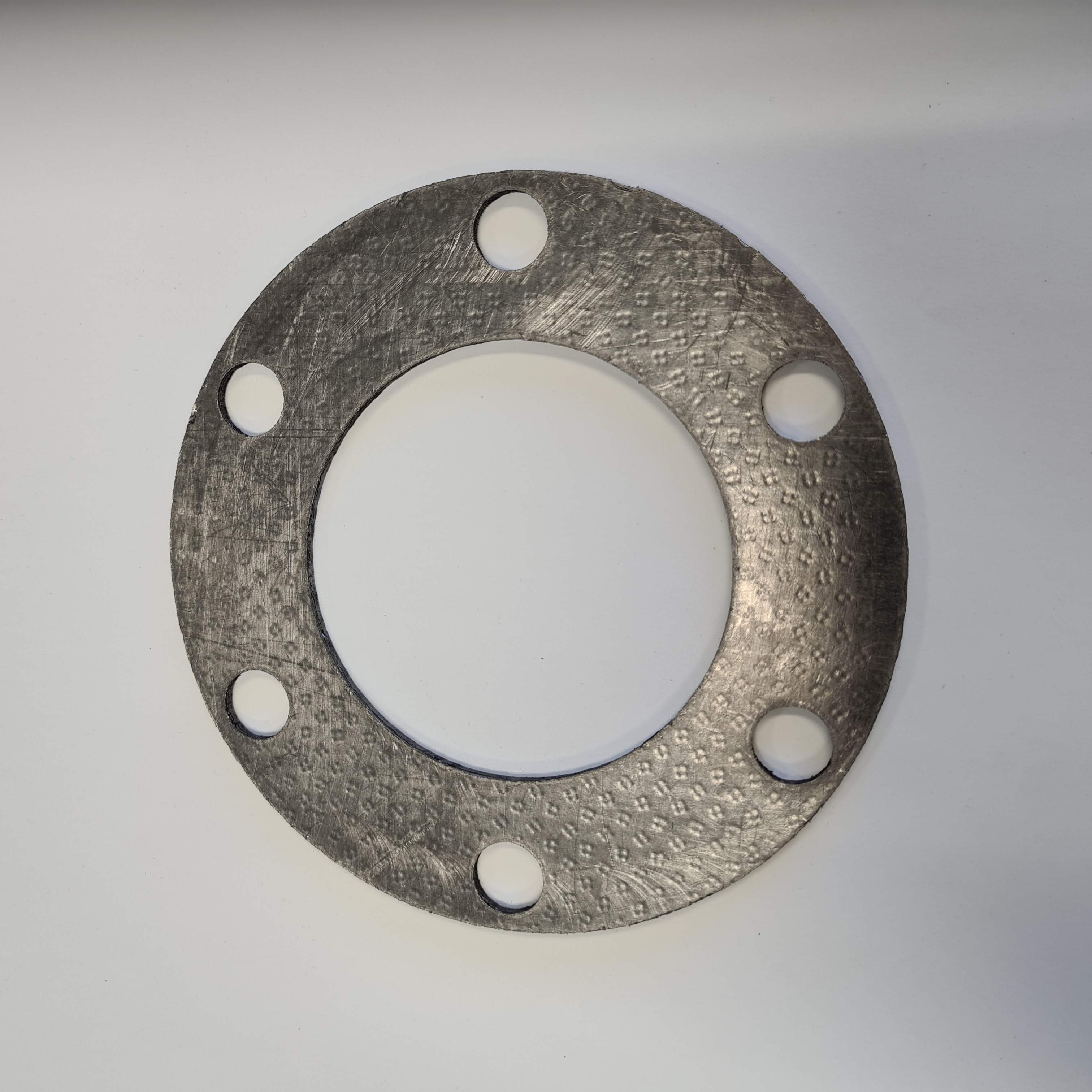

Graph-Lock 3125

GRAPH-LOCK® 3125-TC Flexible Graphite Gasketing: Mechanically bonded graphite sheet with a 316SS tang insert. Purified natural graphite flake that have been acid washed, expanded under heat, and then compressed into sheets with a minimum graphite content of 98%.

For further information or help on correct application of gasket material please send us an email to sales@inoxfittings.com.au

Note: images don't necessarily represent the flange gasket size and are only an indication of material type.
